IPS EDP Interface TFT LCD Module 15.6 Inch Resolution 1920x1080

Name: IPS EDP Interface TFT LCD Module 156 Inch Resolution 1920x1080
Brand: Elite Tree
Price: 1 USD

Brand Name : Elite Tree

Model Number : ET156NP01

Certification : ISO9001:2015 / ISO14001

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100Kpcs~ per month

Delivery Time : 5days for sample and 20-25 days for mass production

Packaging Details : In anti-statics bag packed in carton or according to the customer's requirement

Display Type : 15.6'' 1920*1080 LCD Display Module

Viewing Direction : Full viewing angle

Operting Voltage : 3.3V

Operting Temperature : -20~70C

Brightness : 250cd/m2 (Type)

Interface : EDP

Backlight : 40pcs LED White

Active Area : 344.16 (H)* 193.59 (W)

Contact Now

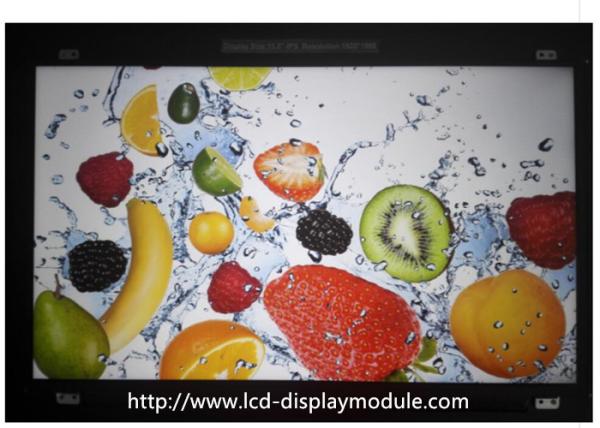

15.6 inch 1920*1080 IPS TFT LCD Display Module

TFT LCD Display Module

Product Information

Display Type	15.6''
Display format	1920 (RGB) * 1080
Outline dimension	359.50217.503.20mm
Active area	344.16(H) x 193.59(V)
IC package	COG
Interface	Based on customer requirement
Display Mode	Transmissive/Normally Black
Touch panel optional	Optional
Viewing direction	Full viewing direction
LED backlight color	White
Power supply(typ)	3.3V
Backlight current (typ)	side, white Led(40PCS)
Operating temp	-20ºc~70ºc
Storage temperature	-30ºc~80ºc
If accept customized	Yes
RoHS compliance	Yes

Product Drawing

IPS EDP Interface TFT LCD Module 15.6 Inch Resolution 1920x1080

Company information

Elite Tree Technology founded in 2013, is engaged in the designing, producing, marketing and selling of various types of small to medium sized liquid crystal displays(LCD) and liquid crystal display modules (LCM), TFT Display, Backlight LED, Resistance and Capacitive Touch Screen.

Our advantages

1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.
