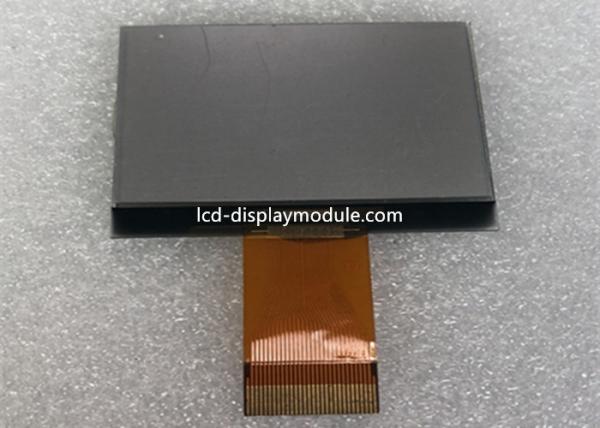

COG VA Transmissive Negative 3.3 V COG LCD Module Display With White Backlight
COG LCD Module
Feature Of LCD Display Module
l High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
l Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
l High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
l Good heat dissipation with fans and using meanwell power supply, long lifespan.
l You can adjust the resolution by change modules directly, this can save your cost and labor.
l 250x250mm module, compatible with various pitches such as PH2.6/PH2.9/PH3.9, high selectivity
l High-precision and ultra-practical design, 500x500/1000mm cabinet, light and easy to assemble
l Customized arc-side locks design, the angle can be adjusted to achieve arc, round and S-shaped splicing.
l High-contrast outdoor pure black light, non-destructive refresh and grayscale. Achieve ultra-high contrast 8000:1, low brightness 1000~3000cd adjustable, protect the human eye, meet indoor and outdoor application scenarios
Company Information
Product Information
| Display Type | COG VA Transmissive Negative Screen |
| Display format | VA |
| Outline dimension | 63 * 55 * 8.4 mm |
| Active area | 45 * 45 mm |
| | COG + PIN |
| | HT16C23 |
| | 1/4 Duty, 1/3 Bias |
| | White |
| Power supply(typ) | 3.3 V |
| Backlight current (typ) | Side, white Led(5pcs) |
| | -20ºc~70ºc |
| Storage temperature | -30ºc~80ºc |
| If accept customized | Yes |
| RoHS compliance | Yes |
Our advantages
1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours
Application
Product Drawing
Product Tags:
|
|
VA COG White Backlight LCD Module Display Transmissive Negative 3.3V HT16C23 Images
|
